Máy lạnh hấp thụ cấp nhiệt bằng hơi
Model:

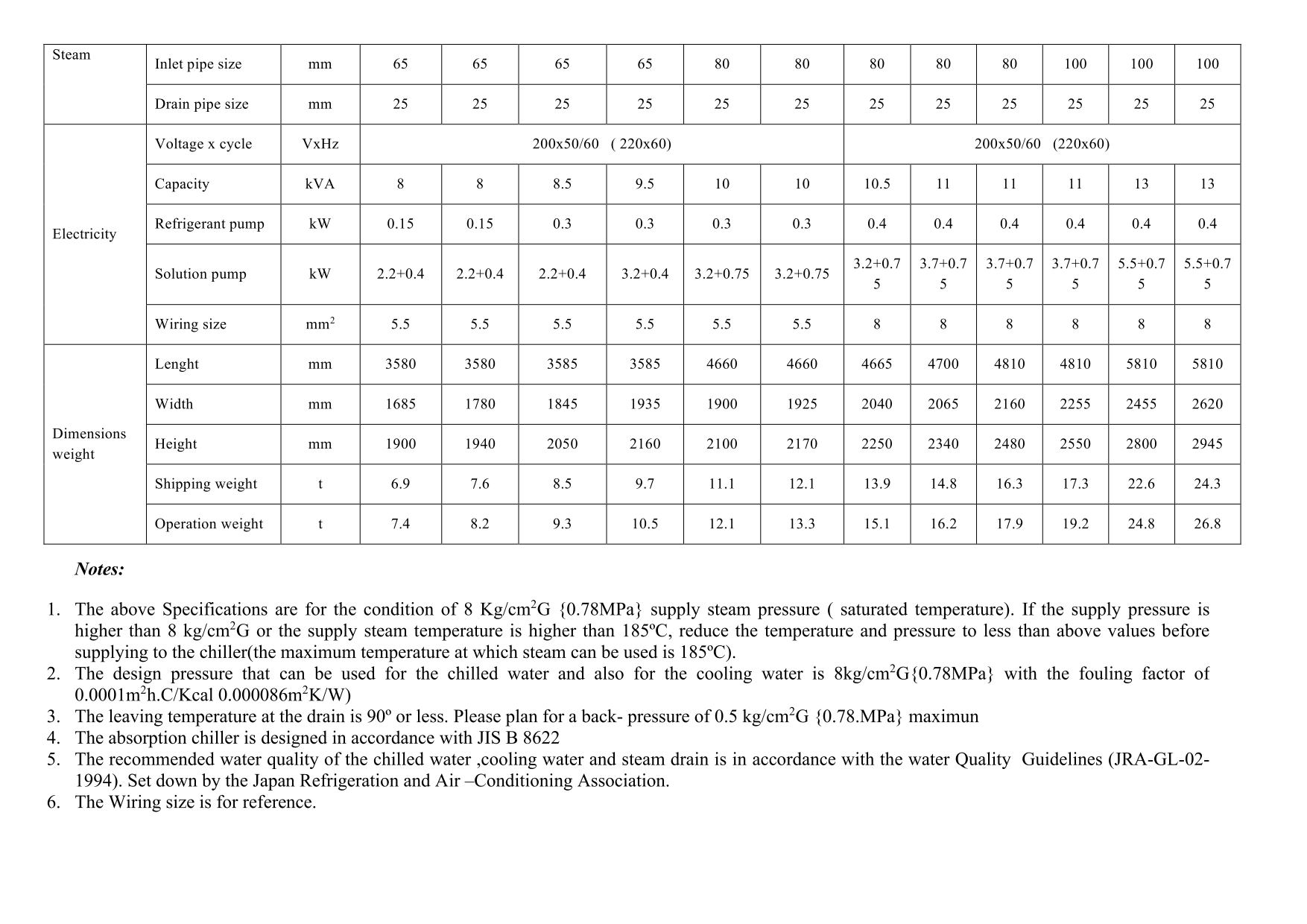

Note:
- 1. The above Specifications are for the condition of 8 Kg/cm2G {0.78MPa} supply steam pressure ( saturated temperature). If the supply pressure is higher than 8 kg/cm2G or the supply steam temperature is higher than 185ºC, reduce the temperature and pressure to less than above values before supplying to the chiller(the maximum temperature at which steam can be used is 185ºC).
- 2. The design pressure that can be used for the chilled water and also for the cooling water is 8kg/cm2G{0.78MPa} with the fouling factor of 0.0001m2h.C/Kcal 0.000086m2K/W)
- 3. The leaving temperature at the drain is 90º or less. Please plan for a back- pressure of 0.5 kg/cm2G {0.78.MPa} maximun
- 4. The absorption chiller is designed in accordance with JIS B 8622
- 5. The recommended water quality of the chilled water ,cooling water and steam drain is in accordance with the water Quality Guidelines (JRA-GL-02-1994). Set down by the Japan Refrigeration and Air –Conditioning Association.
- 6. The Wiring size is for reference.
